Flange V-Band (inlet) Garrett G35-900 / G35-1050 turbine housings

  • Item-No.: 201405
  • Manufacturer-No.: 3506283505G35
  • Manufacturer: TurboZentrum
TurboZentrum
36,30 €
incl. 19% VAT , plus shipping costs
seen cheaper?
Stock:
more than 20
Status:
already reordered
ETA:
1 - 4 Workdays **
Order within the next x hours x minutes x seconds and your package will arrive on 26.06.2025 - 04.07.2025

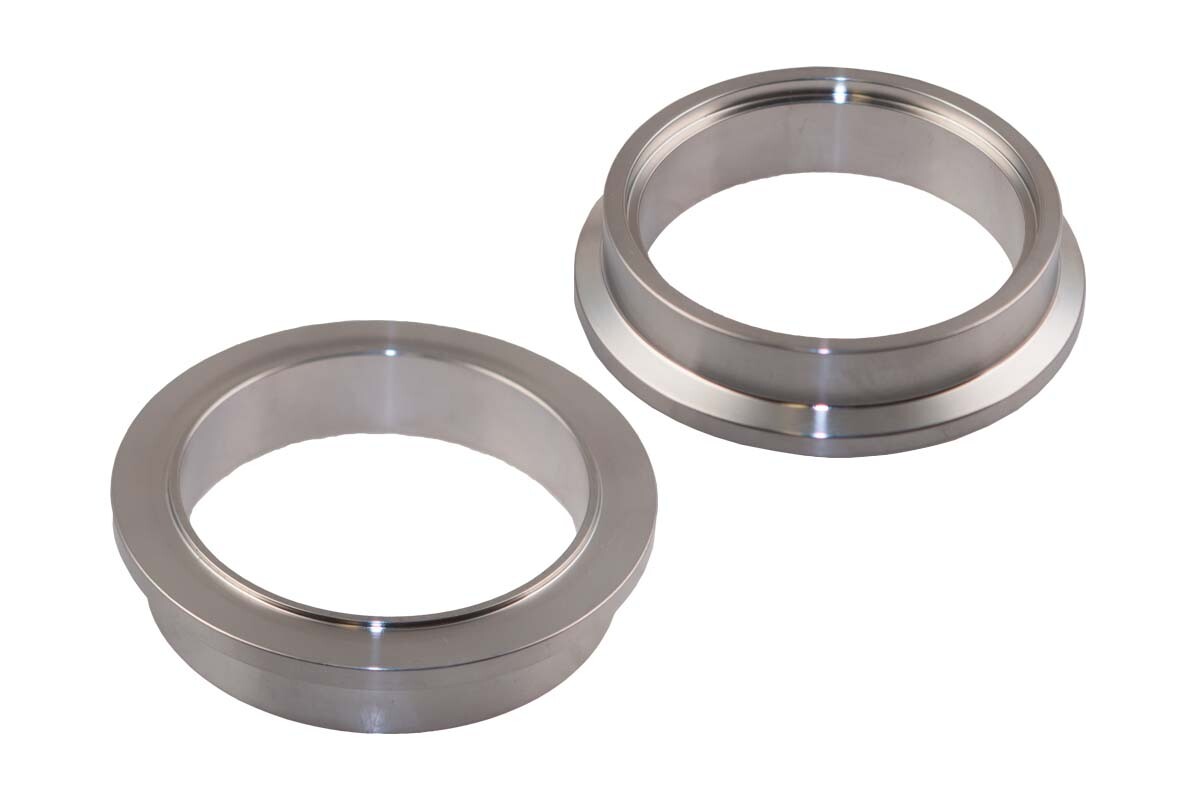

Flange V-Band (inlet) G35 turbine housings

Stainless steel manifold flange for Garrett V-Band Ni-Resist turbine housings

Garrett V-Band flange fits for Garrett G35-900 / G35-1050 exhaust housings

High-quality stainless steel V-Band flange (inlet) 60mm (2,35"), fits for the brand new Garrett G35-900 / G35-1050 single scroll V-Band tubrine housings. This V-Band ring is required if you like to fit an original Garrett V-Band Ni-resist exhaust housing on a turbo manifold / collector. The flange will be welded to the turbo manifold collector and then clamped with the turbine housing (see list of housings applications below) using our stainless steel V-Band clamp (826466-0001). This V-Band ring is CNC maschined from heat resistant stainless steel and very good weldability.

Application: Inlet of the turbine housing to manifold side

Material: Stainless steel

Fits for turbine housings (inlet / manifold side):
G35 740902-0102
G35 740902-0103
G35 740902-0104
G35 740902-0105

G35 740902-0012 - Reverse
G35 740902-0012 - Reverse
G35 740902-0013 - Reverse
G35 740902-0014 - Reverse

Fits for turbocharger (inlet / manifold side):
G35-900 880700-5001S
G35-900 880700-5002S
G35-900 880700-5003S
G35-900 880700-5004S
G35-900 880701-5001S - Reverse
G35-900 880701-5002S - Reverse
G35-900 880701-5003S - Reverse
G35-900 880701-5004S - Reverse

G35-1050 880700-5008S
G35-1050 880700-5009S
G35-1050 880700-5010S
G35-1050 880700-50011S
G35-1050 880701-5007S - Reverse
G35-1050 880701-5008S - Reverse
G35-1050 880701-5009S - Reverse
G35-1050 880701-5010S - Reverse
