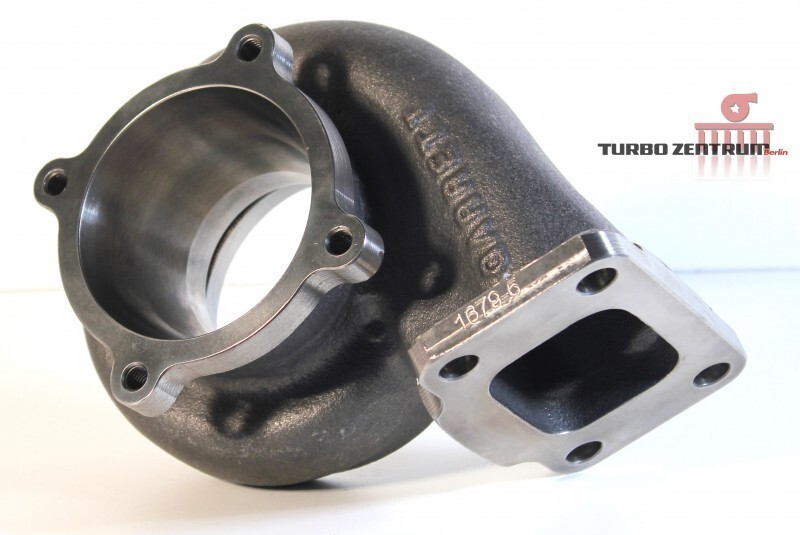

Turbine housing Garrett GT (T3 4-bolt 76mm)
Single turbine housing with T3 flange
For GT35R / GTX35 Series with 1.06 A/R
This turbine housing is the standard housing of a GT35R. This turbine housing is to be used with Garrett turbochargers of the GT35 or GTX35 series with 65mm turbine wheel.
Turbine Inlet flange: T3
A/R-ratio: 1,06ar
Fits:
GT3582R (714568-5001 / 714568-5002 / 714568-5003 / 714568-5007 / 714568-5008 / 714568-5009 / 714568-5010 / 714568-5011 / 714568-5012)
GTX3576R (803714-1)
GTX3582R (803715-1)
Garrett turbochargers allow a very easy exchange of the turbine housing, for exampling enabling a quick change in mounting position or the choice of a smaller or larger A/R ratio to increase response or peak performance.
