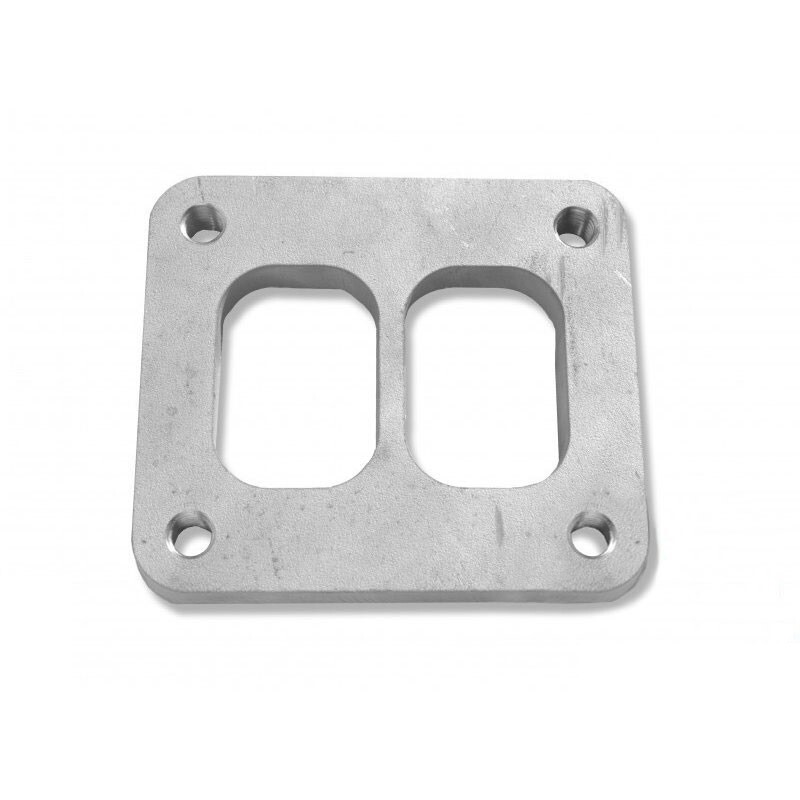

Exhaust Manifold Flange V2A T4 / GT4X divided
Flange for exhaust manifold construction
Premium stainless steel downpipe flange with thread
Offering our exhaust manifold flanges we supply the flange needed to connect the turbocharger to the exhaust manifold. Additionally we supply elbows and collectors needed for the fabrication of an exhaust manifold. All flanges are water-jet cut to prevent warping during the cutting process. They are perfectly even. The flange thickness is chosen by our experience.
Material: stainless steel 1.4301 / V2A / SS304
Material thickness: 10mm
Total dimensions: 114mm x 96mm
Dimensions cut-out: 76mm x 50mm (Steg 5mm)
Hole distance: 83mm x 70mm
Thread: M8
Extras / Features:
Thread!! No holes!
For / Fits:
turbocharger T4X / GT4X
Garrett T4 , T04
Garrett GT40 , GT42 , GT45 , GT47
Garrett GT4082
Garrett GT4088
Garrett GT4708 , GT4780
Garrett GT4718 , GT4788
Garrett GT40R , GT4088R
Garrett GT40/42R , GT4042R , GT4094R
Garrett GT45R , GT4508R
Garrett GT47R , GT4780R , GT4708R
Garrett GT47R , GT4788R , GT4718R
If you are unsure whether this flange fits to your turbocharger, just draw a sketch of your turbine entry flange and hand it to us for comparison.
- Usage: Manifold to turbocharger
- Model: single flange
- Flange type: T4 divided / TwinScroll
- Material: Stainless Steel
- Item weight: 0,30 kg
