Oil return flange Garrett GTX / G-series / GT-R / BorgWarner EFR - pipe flexible short

Return flange with flexible pipe for EFR / Garrett GTX / G-series / GT-R / Precision and Turbonetics (ball bearing)

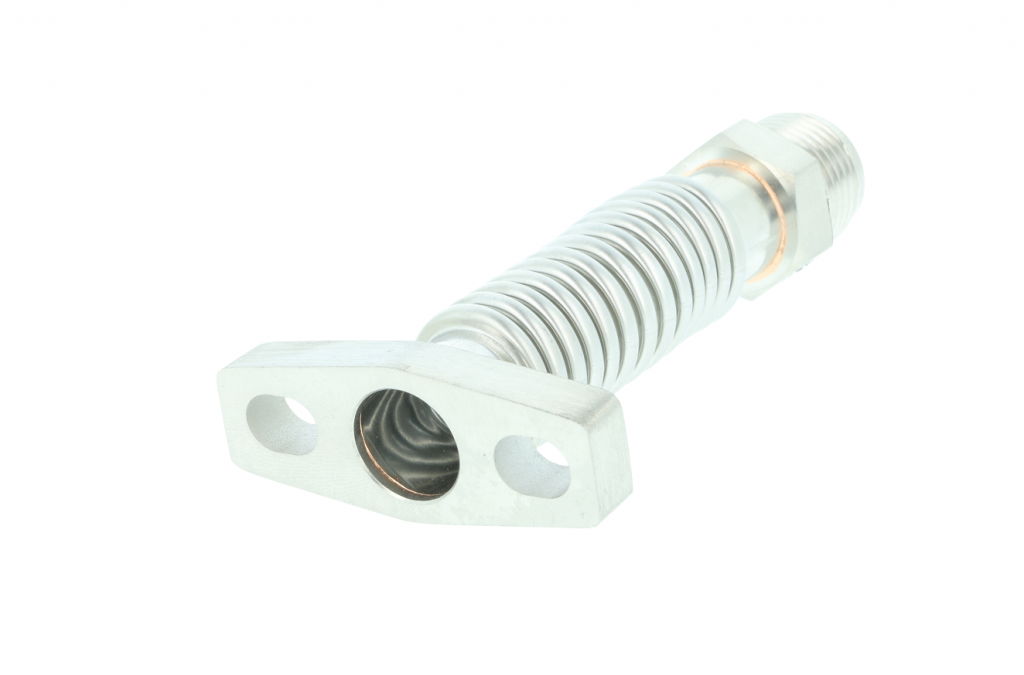

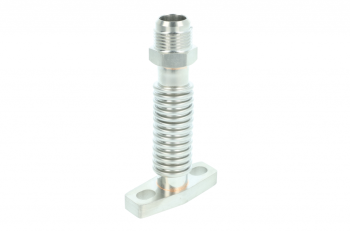

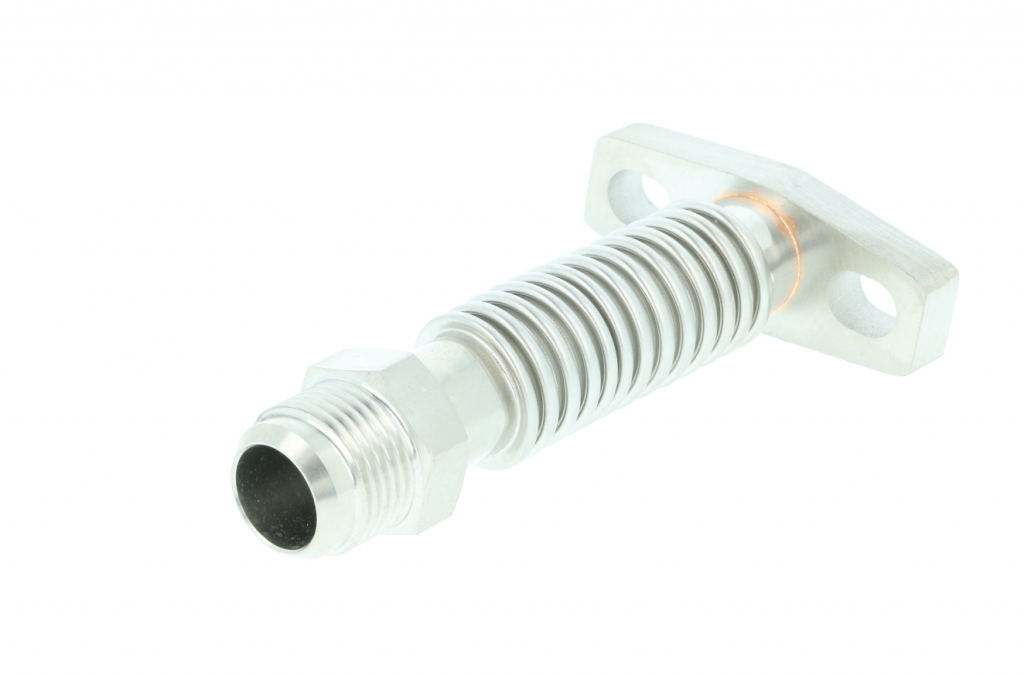

Complete stainless steel pipe with flexible part, flange and Dash 10 male thread

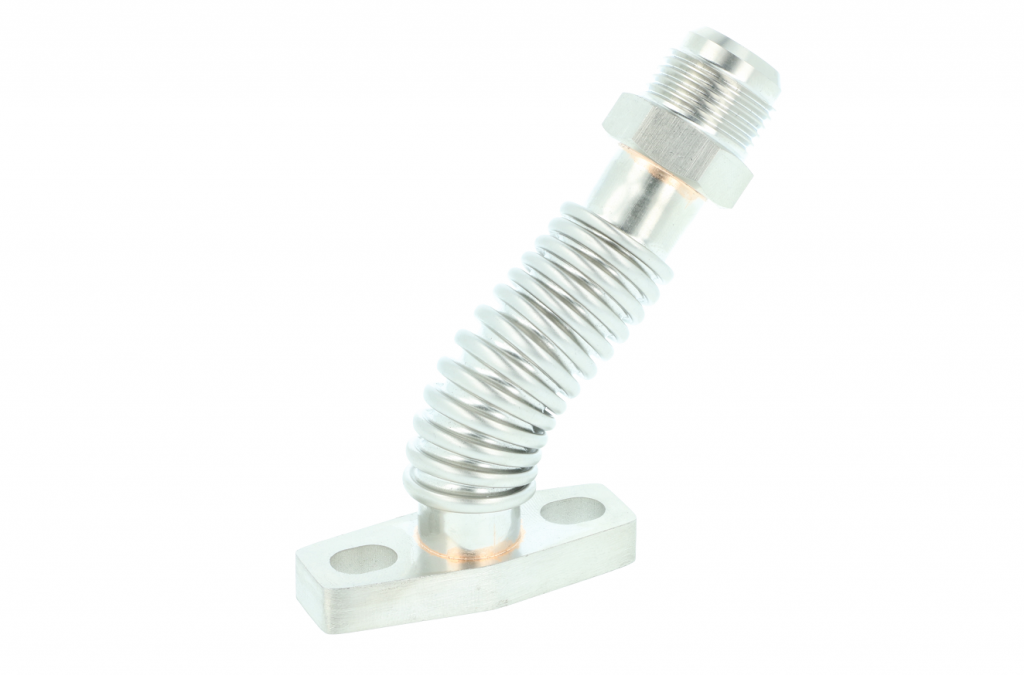

Our innovative oil return flange is the solution for every problem which occur regarding the oil return. It combines a solid pipe which is essential in hot areas but also gives the flexibility which usually only provides a hydraulic line. Once bend it stays in position and needn't be fixed in a complicated way. Vibrations and engine movements are no problem for this pipe. At the end is a Dash 10 outer thread which offers the possibility to continue adjustable with hydraulic connections or hydraulic lines. You need another extension of the solid pipe? Because the complete set up is made of stainless steel you can cut the Dash 10 thread and weld on another stainless steel pipe. Due of the long bores a certain flexibility for other turbochargers with a similar flange connection is given. The profile of the return bore is in the right size for the necessary return of the oil.

Material: Stainless steel 1.4301 / SS304
Thread fitting: Dash 10 / -10 AN
Inside diameter of tube: 15,2mm
Flange size: 61mm x 25mm
Bore distance: 38-45mm (long bores, messured: minimal to maximal middle of the bore)
Bore diameter: 15mm
Total length: 120mm
Length flexible part: 63mm

For / fits with:
ball bearing turbocharger
journal bearing turbocharger of the 10 and 20 series

Garrett T12
Garrett T15
Garrett T2 , T20
Garrett T25
Garrett GT2554R (471171-5003)
GT2854R (471171-5009)
GT2859R (780371-5001 / 707160-5009)
GT2860R (707160-5007 / 707160-5005 / 739548-5009)
GT2860RS (739548-5001 / 739548-5005)
GT2871R (743347-5001 / 743347-5002 / 743347-5003 / 743347-5004 / 472560-5015 / 771847-5001 / 780371-5002 / 707160-5010)
GT2876R (705330-5001 / 705330-5002)
GTX2860R (816364-1)
GTX2863R (816365-1)
GTX2867R (816366-1)
GT3071R-WG
GT3071R (CHRA 700177-5023)
GT3076R-WG
GT3076R-C10
GT3076R (700382-5012)
GTX3067R (824727-0001)
GTX3071R (803712-1)
GTX3076R (803713-1)
GT3582R (714568-5001 / 714568-5002 / 714568-5003 / 714568-5007 / 714568-5008 / 714568-5009 / 714568-5010 / 714568-5011 / 714568-5012)
GTX3576R (803714-1)
GTX3582R (803715-1)

BorgWarner EFR 6258
BorgWarner EFR 6758
BorgWarner EFR 7064
BorgWarner EFR 7163
BorgWarner EFR 7670
BorgWarner EFR 8374
BorgWarner EFR 9180

Mitsubishi Performance MHI TD05-06 16G Turbo
Mitsubishi Performance MHI TD05-06 18G Turbo
Mitsubishi Performance MHI TD06 20G Turbo

Xona Rotor

Precison Turbo and Turbonetics (ball bearing)

Please make sure:

For a supply line choose minimum a Dash 4 line. The oil return line must have a minimum inner diameter of 16mm or Dash 10!
