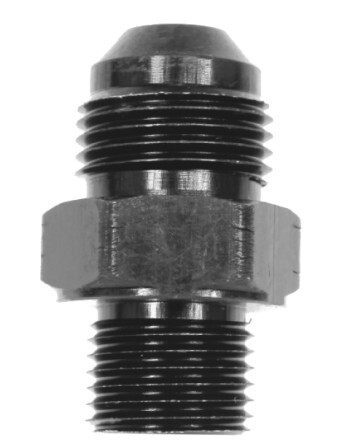

Screw-in Adapter M14 x 1,5 to Dash 8 / -08 AN
Hydraulic adapter metric to external thread dash
CNC milled aluminum, black anodized
With our screw-in adapters you have the option to build yourself of our hydraulic lines, also when there are only vehicle-specific metric connectivities. This is particularly the case with European vehicles. All adapters are machined CNC from aluminum and then black anodized. By anodizing the adapter can be used with all fluids (oil, fuel, E85, cooling water, etc.). When designing the adapter has been taken to achieve maximum drilling with maximum wall thickness. Thus, each adapter is sufficiently stable and has the greatest possible flow.
Material: aluminium
Colour: black anodized
Thread A: M14x1,5
Thread B: Dash 8 / -08 AN
Length overall: 37mm
Length thread A: 10mm
Length thread B: 17mm
Bore: 8mm
Wrench size: 19mm
- Model: Screw-in Adapter
- Thread: M14-08 AN / Dash 8
- Item weight: 0,10 kg
