Wastegate TiAL MV-R, various colors

Manufacturer-No.: Variation

Type

496,17 €

including 19% VAT. , plus shipping

Stock:
In stock
Finanzieren ab 20.5 EUR / Monat
Mehr Informationen zum Ratenkauf

There are variations of this item. Please select the variation you wish.

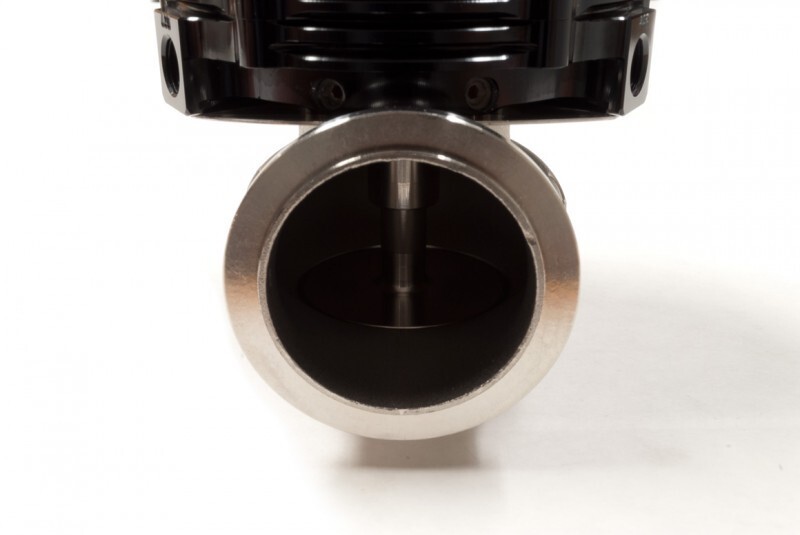

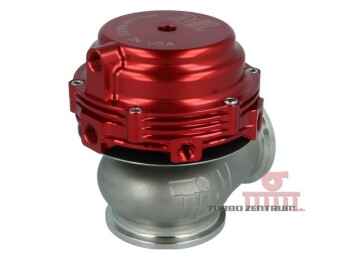

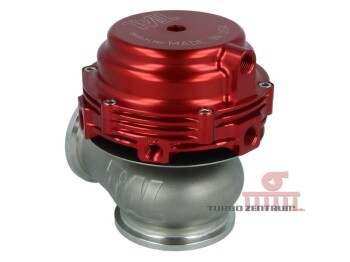

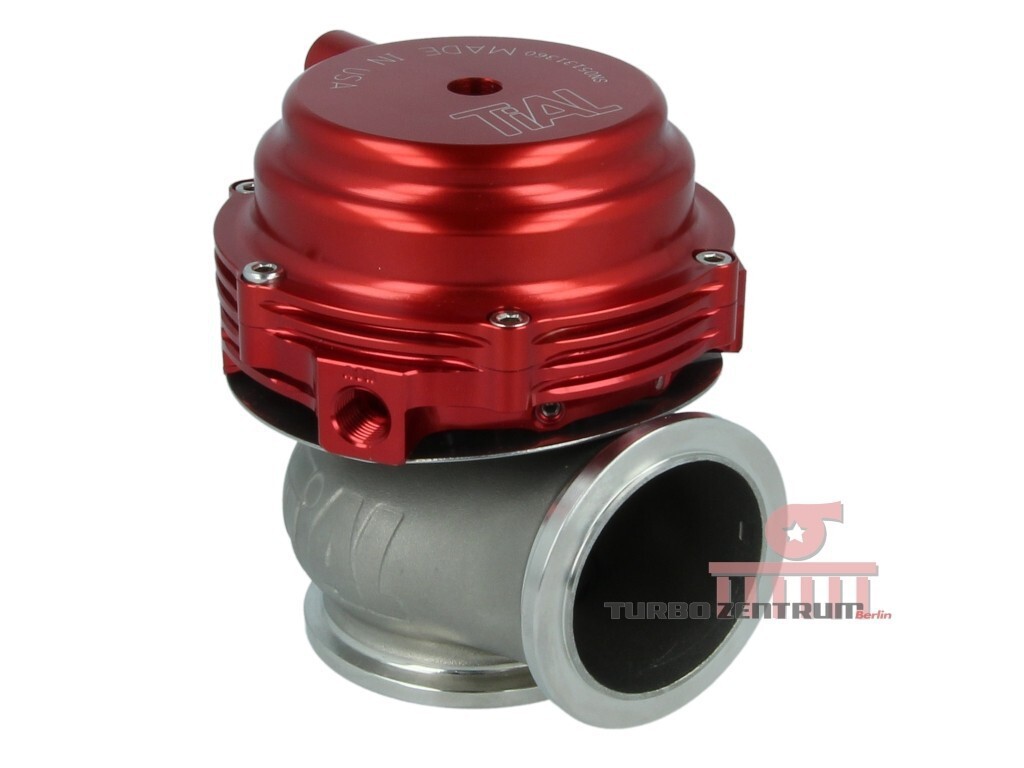

Wastegate TiAL MV-R, Various Colours

Follower of the TiAL V44 (44mm wastegate).

Color: Red, Blue, Black, Silver, Purple / Boost pressure: all

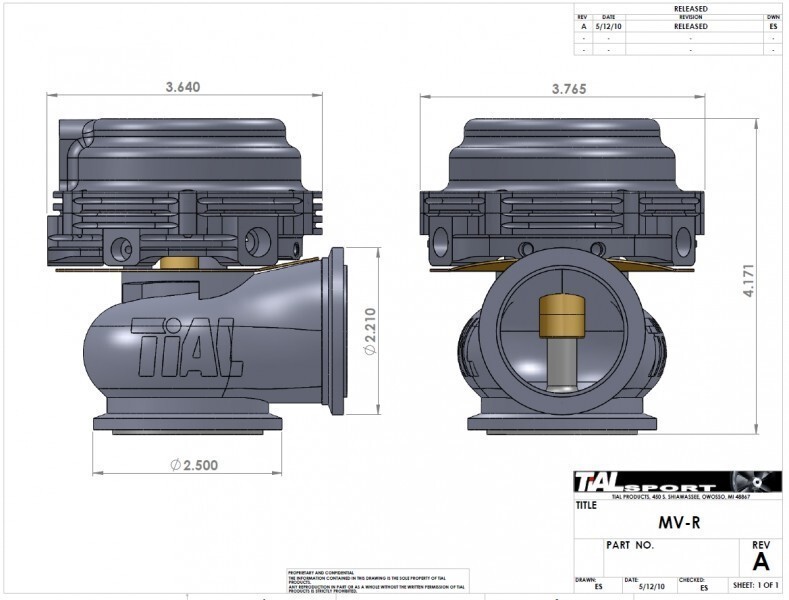

The MV-R 44mm wastegate is more compact than any current 44 or 46mm wastegate on the market. You get two top air ports and three bottom air ports for easy install. This unit is a direct bolt on for our V44. The MV-R has an optional extreme high temp casting available for Motorsport applications

- High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.
- High temperature silicone Nomex reinforced actuator diaphragm.
- 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist "relaxing" at temperature to 900F (483C).
- Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
- All Stainless Steel hardware.
- Mating weld flanges are 304L
- Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).
- 3 lower ports and two top ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.
- Ultra compact design fits in very tight spaces

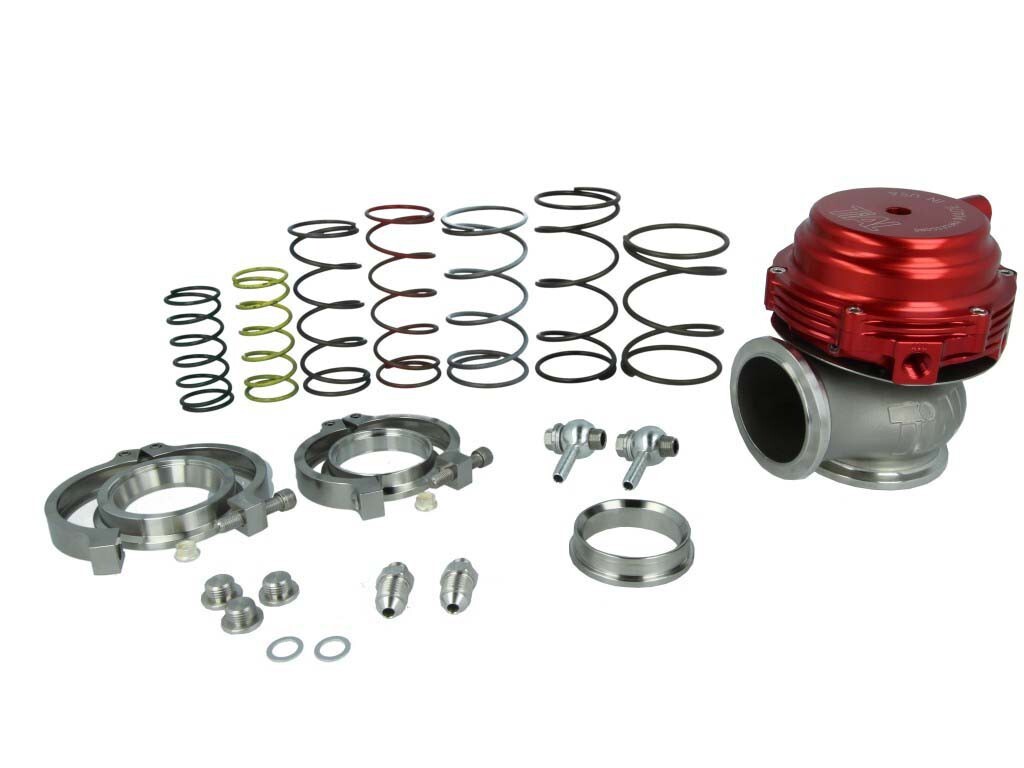

- V-Band inlet and outlet make install easy, flanges and clamps are in the box!

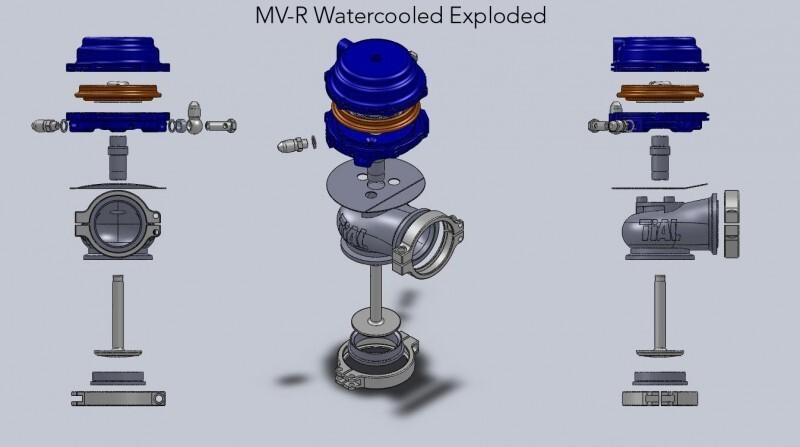

- Integrated -4 AN water cooling ports that cycle a small amount of coolant through the actuator top to keep the temperatures down in extreme conditions such as road racing. These are leak tested after installation from the factory and can be removed if not utilized.
- Extreme high temp casting available for Motorsport applications

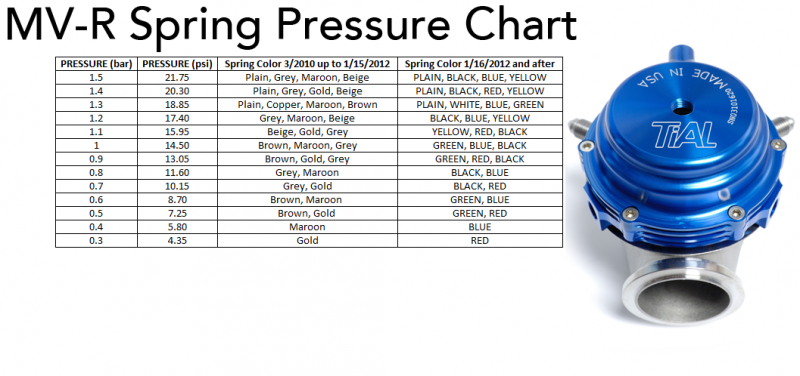

The new TiAL MV-S and MV-R Wastegates are comming with all springs, that you can go with all pressures!


Attributes
Model: Wastegate
Color: blueredblacksilverpurple
Boost pressure: other
Wastegate: TiAL MV-R
Product weight: 1.00 Kg

Similar
Spring TiAL big blue Spring TiAL big blue
Spring TiAL big blue
43,16 € *
Spring TiAL big gelb Spring TiAL big gelb - 5%
Spring TiAL big gelb
41,01 € *
instead of: 43,16 €
Spring TiAL big green Spring TiAL big green
Spring TiAL big green
43,16 € *
Spring TiAL big red Spring TiAL big red
Spring TiAL big red
43,16 € *
Spring TiAL small blue Spring TiAL small blue
Spring TiAL small gelb Spring TiAL small gelb
Spring TiAL small green Spring TiAL small green
Spring TiAL small red Spring TiAL small red - 5%
Spring TiAL small red
41,01 € *
instead of: 43,16 €
TiAL 38-44mm adapter flange - 5%
TiAL 38-44mm adapter flange
38,73 € *
instead of: 40,77 €

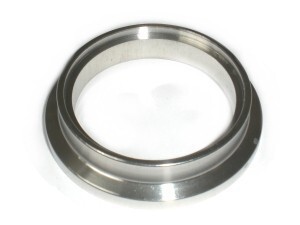

TiAL MV-R flange - outlet
TiAL MV-R flange - inlet

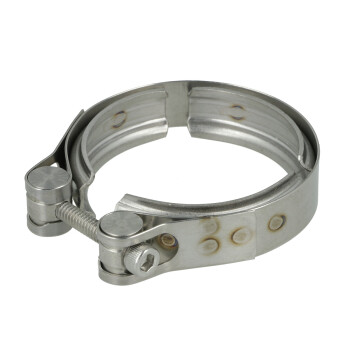

TiAL MV-R clamp - outlet

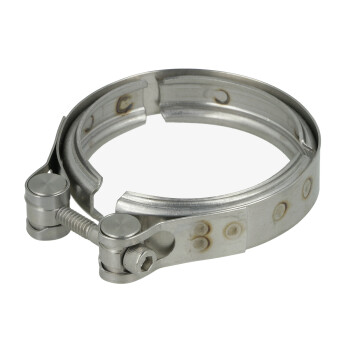

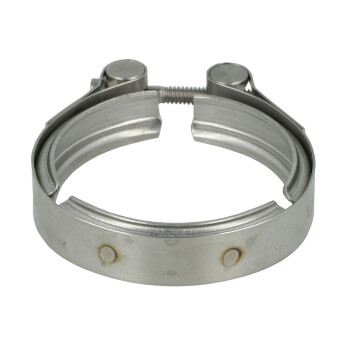

TiAL MV-R clamp - inlet
Other customers have also bought the following items

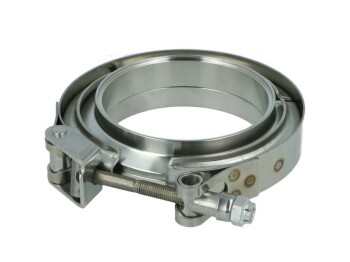

Quick release V-Band Clamp 89mm | BOOST products Quick release V-Band Clamp 89mm | BOOST products - 10%
