Wastegate TiAL V60

Manufacturer-No.: Variation

Type

starting from 740,38 €

including 19% VAT. , plus shipping

Stock:
not in stock
Finanzieren ab 20.5 EUR / Monat
Mehr Informationen zum Ratenkauf

There are variations of this item. Please select the variation you wish.

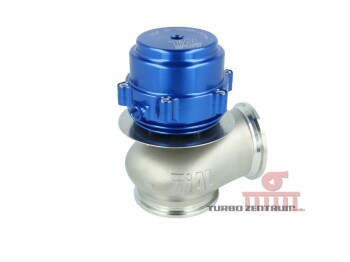

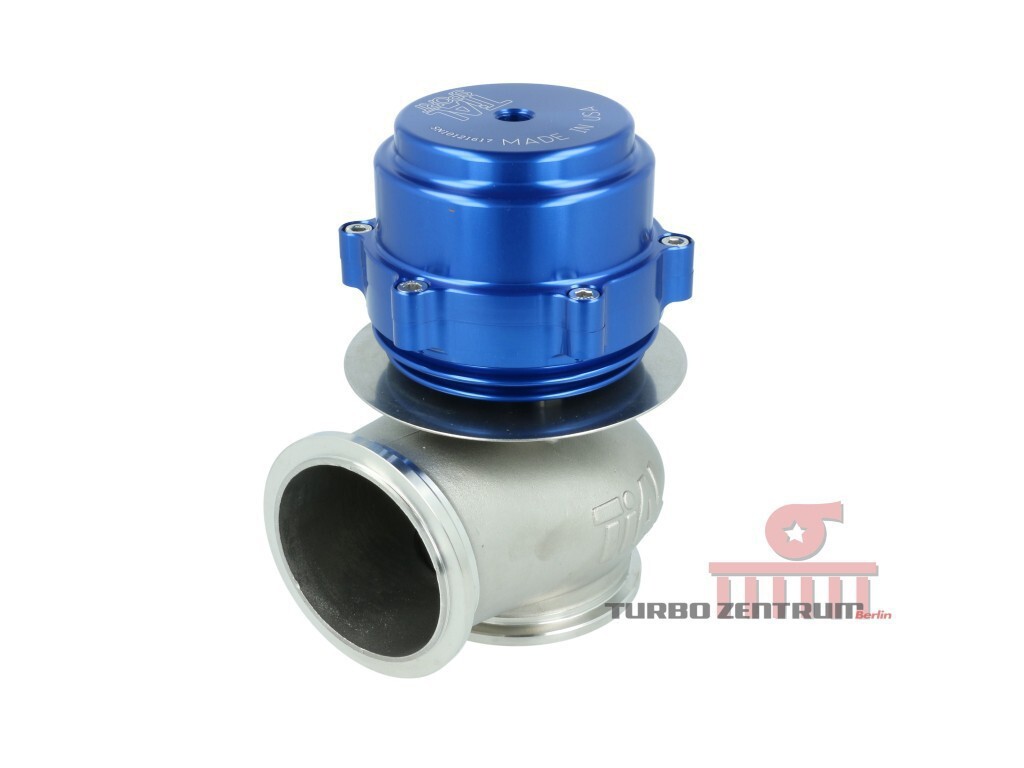

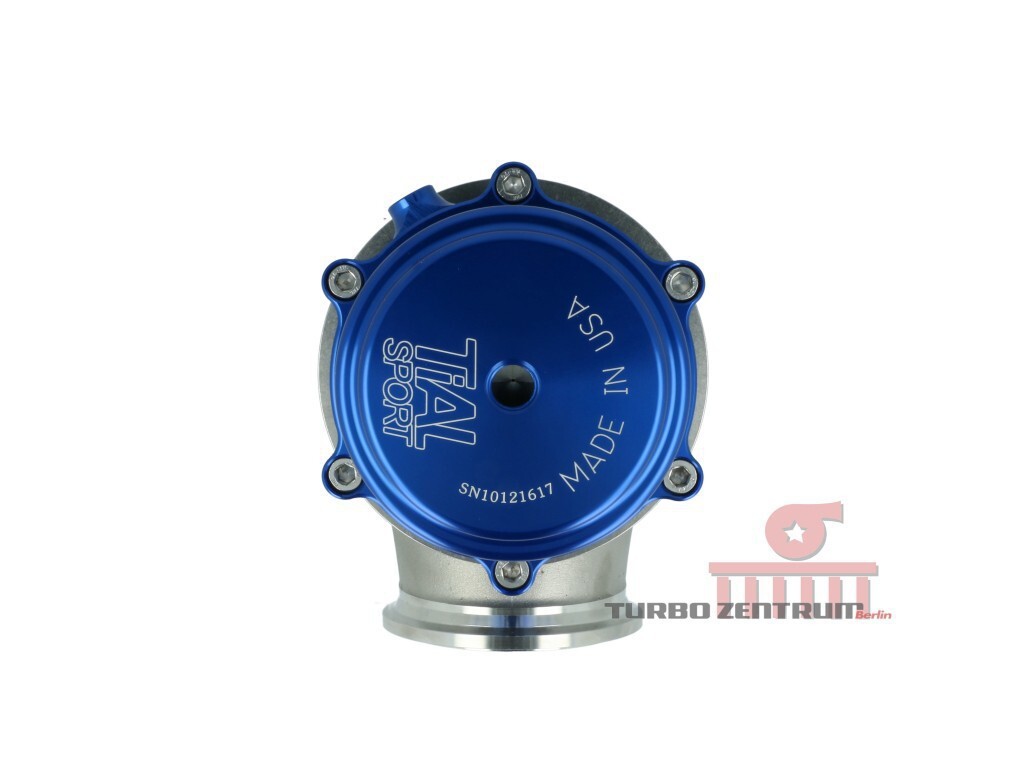

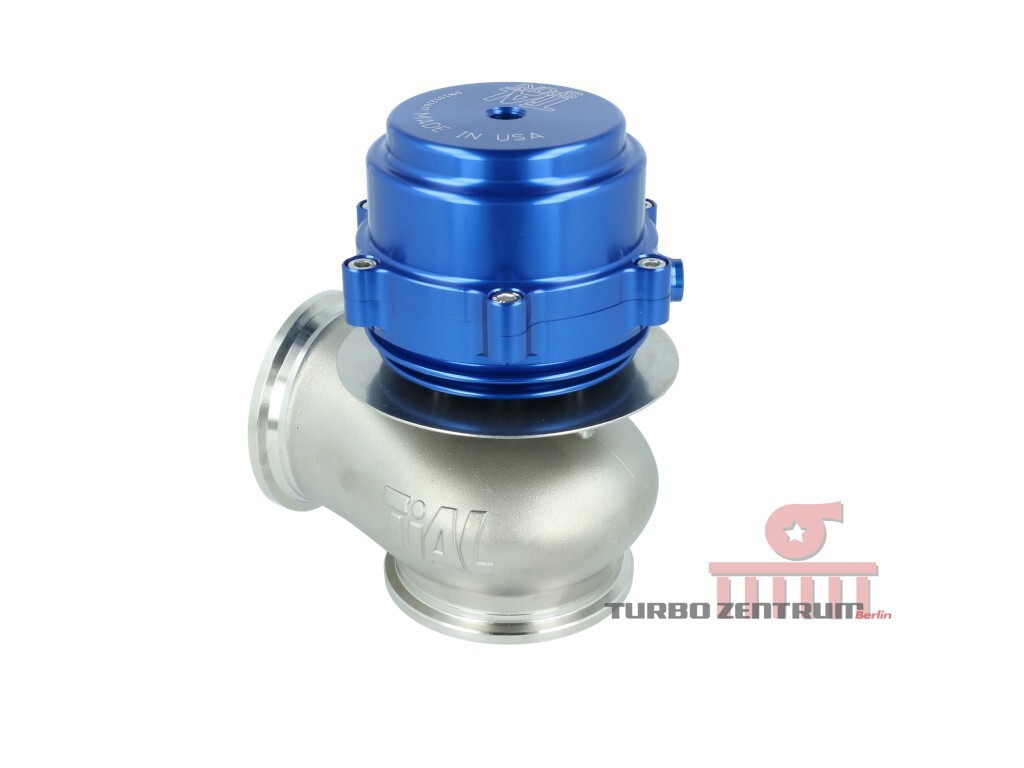

Wastegate TiAL V60, Various Sizes and Colours

The largest unit in the TiAL lineup. This massive 60mm wastegate will control boost with dead on accuracy in the most demanding situations. The V60 is a favorite in the drag racing and road racing industries, from the burnout box to the finishing line at Circuit de la Sarthe

- High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.
- High temperature silicone Nomex reinforced actuator diaphragm.
- 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist "relaxing" at temperature to 900F (483C).
- Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
- All Stainless Steel hardware.
- Mating weld flanges are 304L

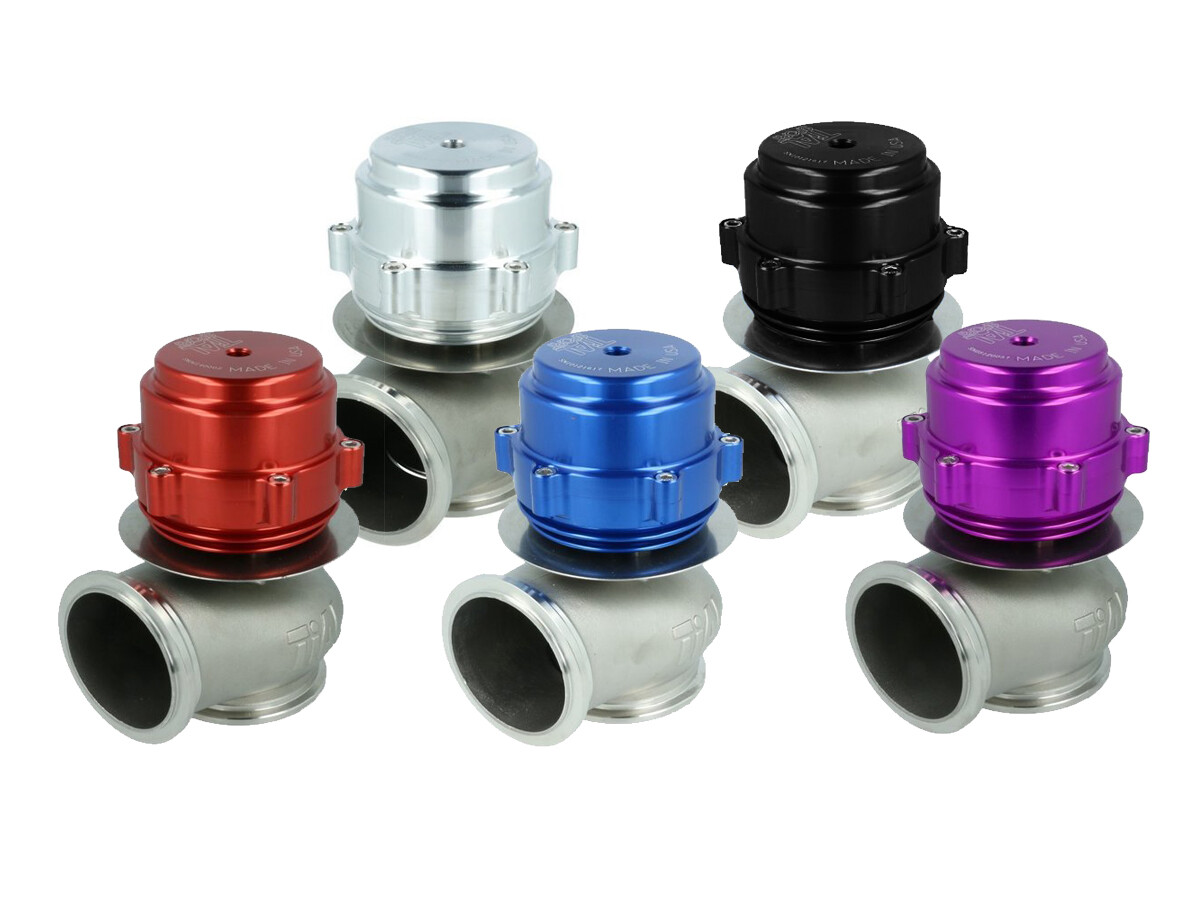

- Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).
- Race proven at Le Mans
- Flows 330CFM @ 1psi differential pressure
If the wastegate is availble only with an other color or boost pressure, please contact us. We may can change the spring.


Attributes
Model: Wastegate
Color: blueredblacksilverpurple
Boost pressure: 0,15bar0,23bar0,3bar0,4bar / 0,41bar0,6bar0,48bar / 0,5bar0,7bar
Wastegate: TiAL V60
Product weight: 1.00 Kg
