Garrett turbine housing GT25 Series - 53mm - T25 Standard 0.64 A/R



289,96 €
incl. 19% VAT , plus shipping costs
instead of: 295,87 €
Save 2%
Status:
will be reordered for you**

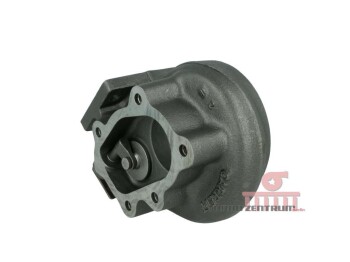

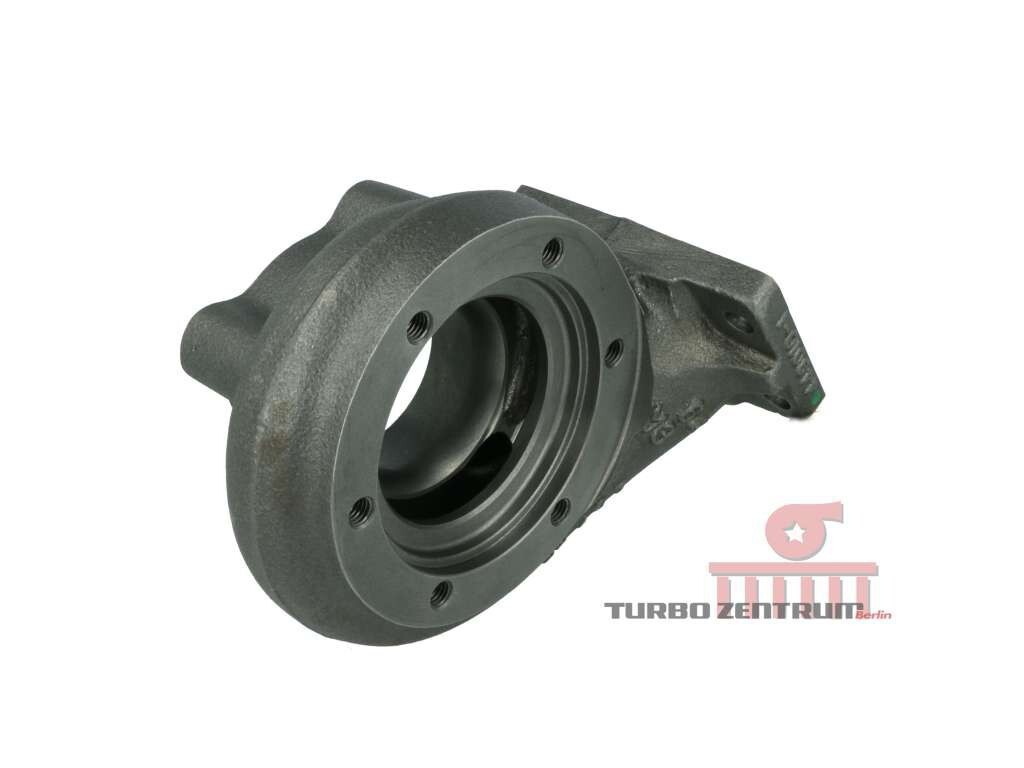

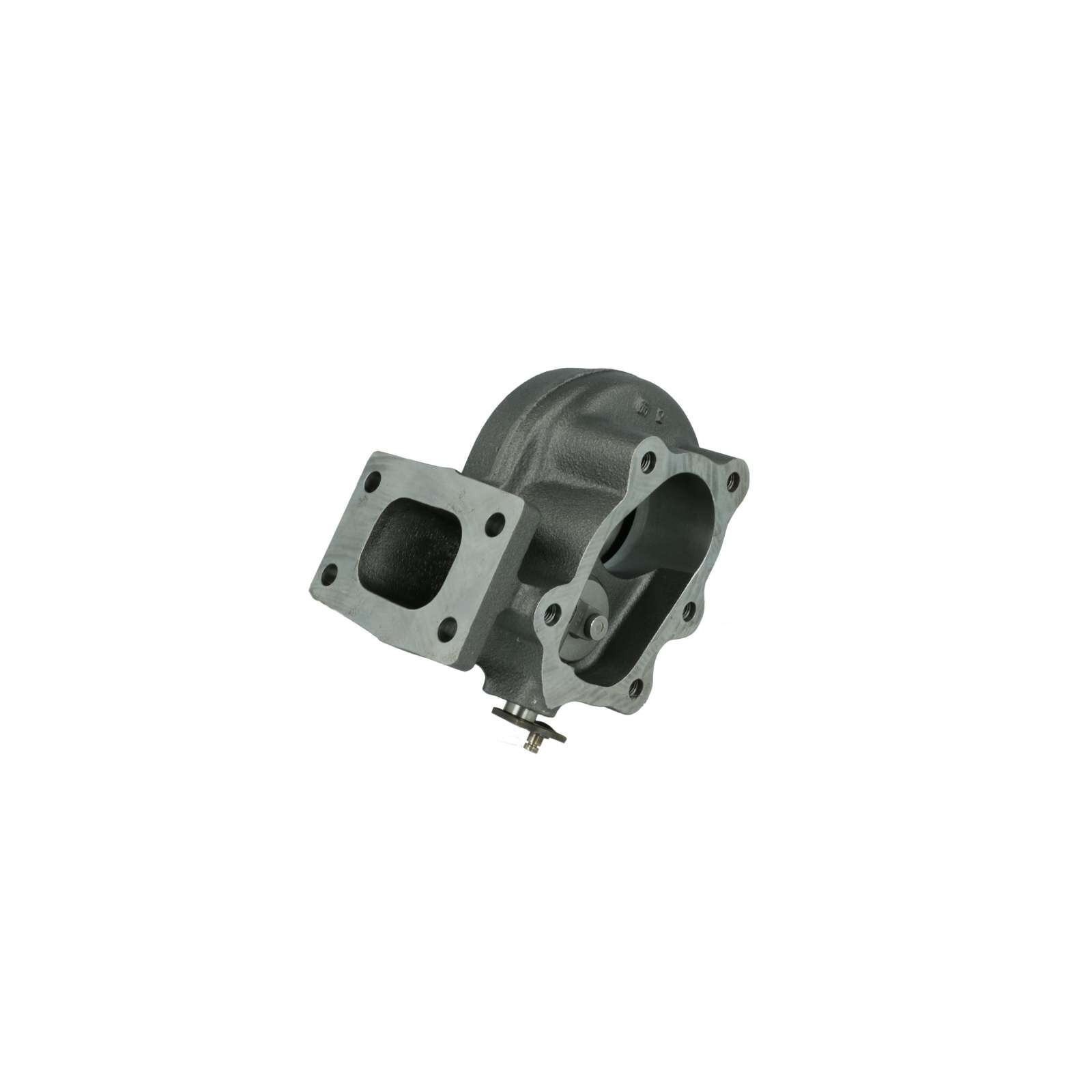

Turbine Housing T25 / GT25

Standalone Turbine Housing

For GT2554R with 0,64ar

This turbine housing is the standard housing of a GT2554R. This housing is to be used with Garrett turbochargers of the GT25 series with 53 mm turbine wheel!

Flange type: T25
A/R-ratio: 0,64ar

Fits:
Garrett GT2554R (471171-5003s / 836023-5001s)

Garrett GT2560R (466541-5004s / 836023-5004s)

Garrett turbochargers allow a very easy exchange of the turbine housing, for exampling enabling a quick change in mounting position or the choice of a smaller or larger A/R ratio to increase response or peak performance.

PDF
Garrett torque specs for screws and nuts

Video
What does T25, T3, T4 flange mean? | Turbocharger simply explained
TwinScroll vs SingleScroll housing | Turbocharger simply explained
What does the A/R value mean - more power vs. response | Turbocharger simply explained
What should I pay attention when installing a motorsport turbocharger?
Internal and external wastegate + actuators | Turbocharger simply explained
