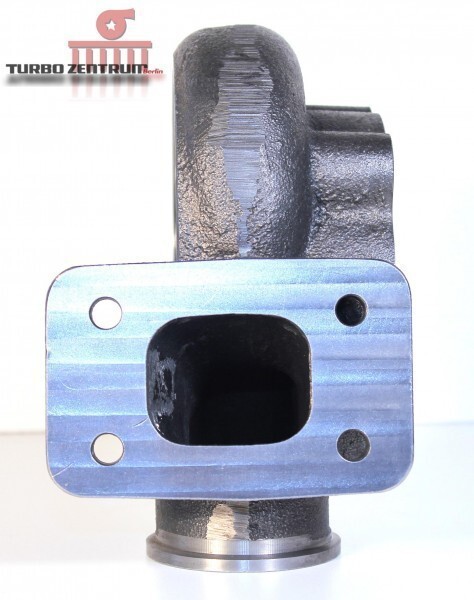

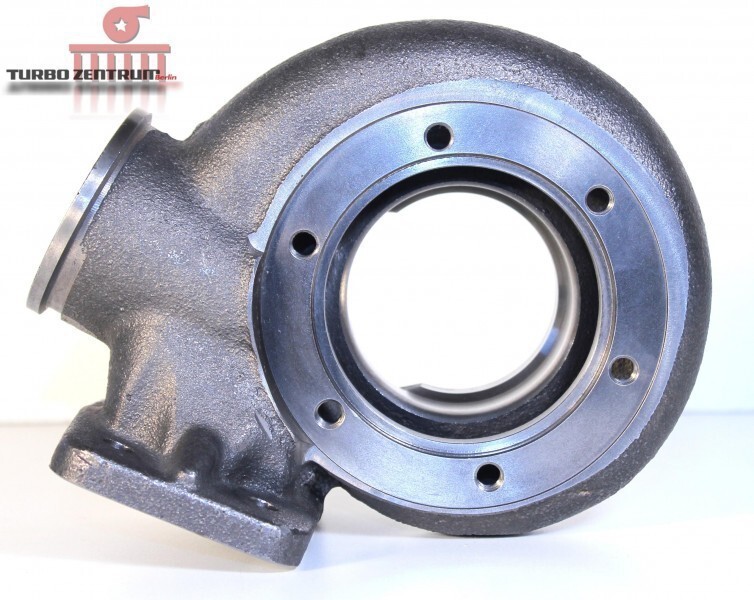

Turbine housing Garrett T25 EWG
Single turbine housing with T25 flange
For GT28R / GTX28 Series with 0.72 A/R
The new EWG housings are only available in 0.72 A/R. They offer an optimum of response and performance on all turbochargers. The housings are fitted with a T25 flange and have an integrated TiAL 44mm / MV-R / Synapse 50mm wastegate port. This places the wastegate at an ideal spot making it easier to compactly fit larger turbochargers to smaller (T25) applications.
Turbine inlet flange: T25
A/R-ratio: 0,72ar
Fits:
GT2854R (471171-5009)
GT2859R (780371-5001 / 707160-5009)
GT2860R (707160-5007 / 707160-5005 / 739548-5009)
GT2860RS (739548-5001 / 739548-5005)
GT2871R (743347-5001 / 743347-5002 / 743347-5003 / 743347-5004 / 472560-5015 / 771847-5001 / 780371-5002 / 707160-5010)
GT2876R (705330-5001 / 705330-5002)
GTX2860R (816364-1)
GTX2863R (816365-1)
GTX2867R (816366-1)
Garrett turbochargers allow a very easy exchange of the turbine housing, for exampling enabling a quick change in mounting position or the choice of a smaller or larger A/R ratio to increase response or peak performance.
