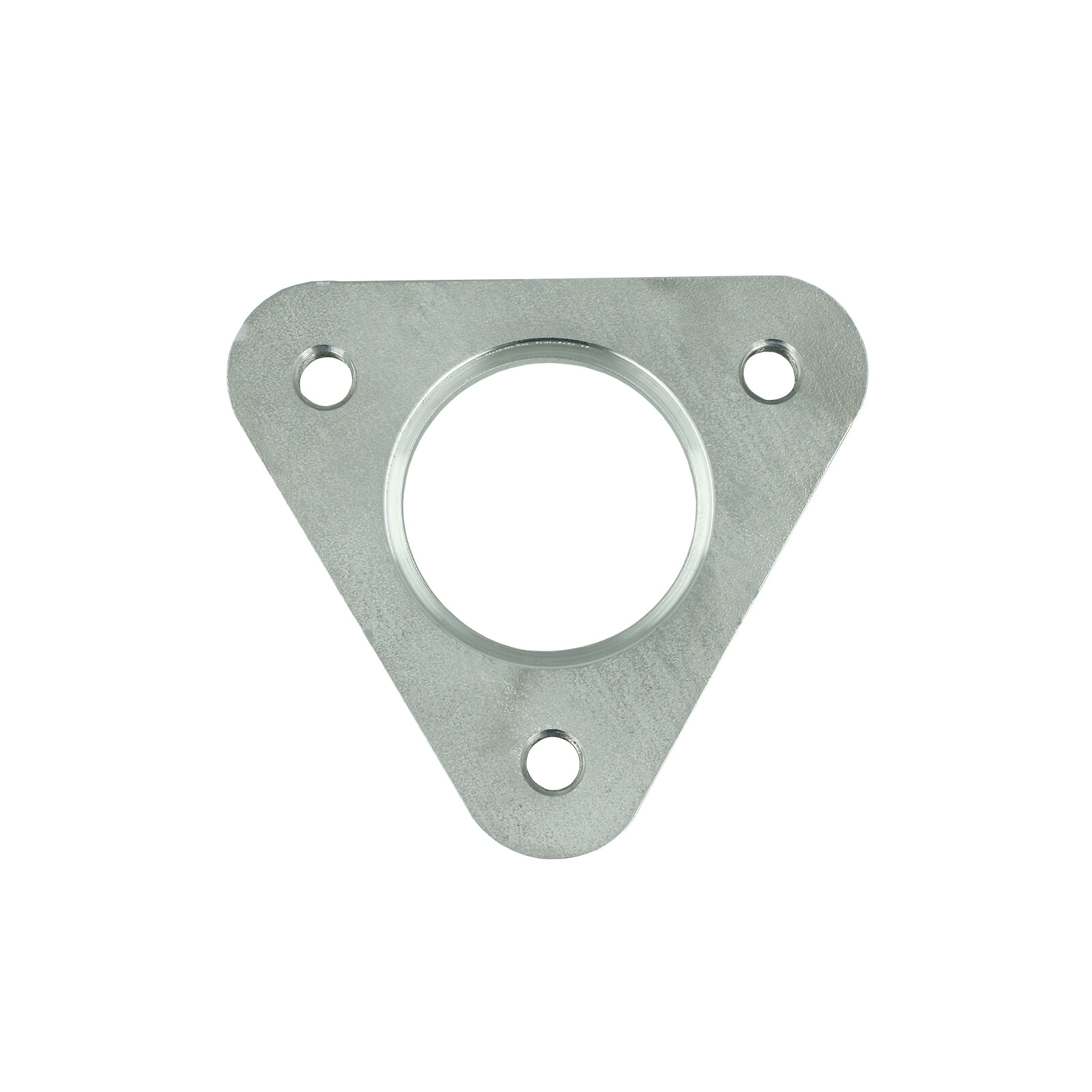

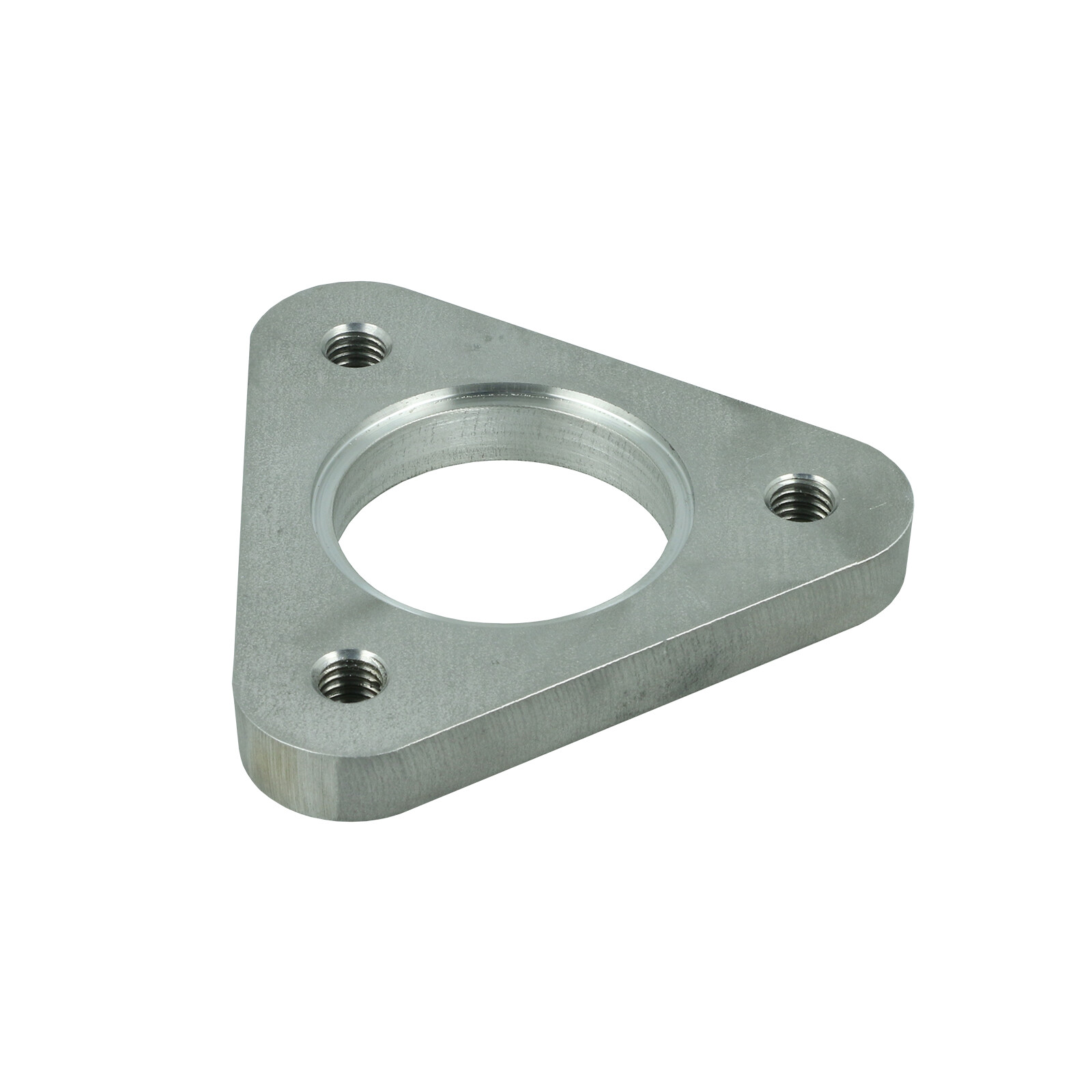

Garrett GBC14-200 Manifold Flange - Stainless Steel
Garrett GBC 14-200 stainless steel flange with 3-bolt connection to build a turbo manifold
High quality stainless steel turbo flange
This flange is needed to build a turbo manifold for the GBC14-200 turbocharger. So for the inlet to the turbine housing. With extra groove for pipe attachment for better welding.
All flanges are perfectly even and fit 100%. They are cut by water-jet or CNC milled to prevent warping.
Material: stainless steel 1.4301 / V2A / SS304
Material thickness: 10mm
For / Fits: Garrrett GBC14-200 turbocharger
Video
What does T25, T3, T4 flange mean? | Turbocharger simply explained
Features
- Usage: Manifold to turbocharger
- Model: single flange
- Material: Stainless Steel
- Item weight: 0,30 kg
