Wastegate TiAL MVS-A / silver
Air-cool-assisted version of the MVS with aluminium cooling fins
Tuning version of the MV-S best suited for high performance requirements
Cost-effective, air-cool-assisted version of the MVS. Approximately 36mm taller overall than MVS. The MVS-A uses finned 6061 aluminum standoffs that act as heat sinks, due to a high thermal heat transfer coefficient. The MVS-A is best suited for engine compartments that have airflow in abundance. Also water-cooled, so it is an economical option for isolating the actuator from heat issues.
- High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs
- High temperature silicone Nomex reinforced actuator diaphragm
- 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist "relaxing" at temperature to 900F (483C)
- Nomic 60 stainless steel is used for the valve seat, and valve bushing
- All stainless steel hardware
- Mating weld flanges are 304L
- Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black)
- 3 lower ports and two top ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports
- V-Band inlet and outlet make install easy, flanges and clamps are in the box
- Integrated -4 AN water cooling ports that cycle a small amount of coolant through the actuator top to keep the temperatures down in extreme conditions such as road racing. These are leak tested after installation from the factory and can be removed if not utilized.
- Five Aluminium heat sinks raise the actuator top away from the casting to dissipate heat when water cooling can not be used
- Designed for Drag/Road Racing

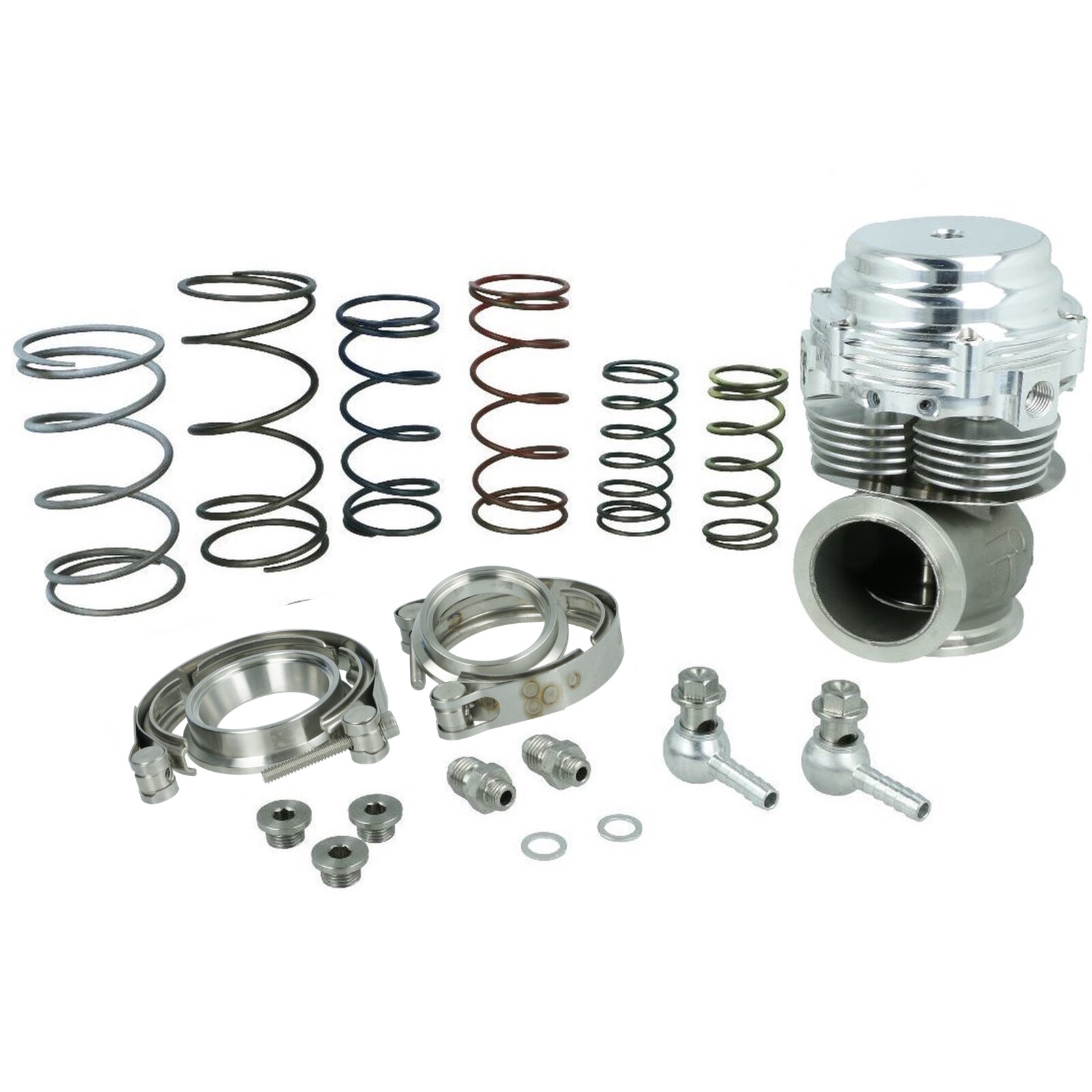

The new TiAL MVS-A and MVS-AR Wastegates are comming with all springs, that you can go with all pressures!
- Color: silver
- Boost pressure: other
- Wastegate: TiAL MVS-A
- Availability: order on customer request
- Model: Wastegate
